Polymer Coated Gabions-Polymer Galfan Gabions-Silicone Coated Wire Gabions- Polyester coated gabions

Polymer coated gabions of steel double twisted hexagonal wire mesh baskets filled with stone are used for various applications including but not limited to retaining walls, mechanically stabilized soil retaining structures, stream and river bank protection, slope paving, outfall structures, weirs and drop structures. Polymer coated gabion can be PVC Coated Gabions, Polyester or Silicone Coated.

Gabions Mesh Details:
•Gabion structure: Double twisted woven wire mesh box shaped baskets of various sizes and dimensions.

•The selvedges of the gabion baskets are the thicker perimeter and edge wires to which the wire mesh is secured as to withstand sudden or gradual stress from any direction.

•Reinforcing wires are the thicker wires incorporated into the netting during fabrication.

•Lacing or tie wire is the wire used to assemble and join the gabion units.

•Connecting wires are the internal wires used to prevent the gabions from bulging.

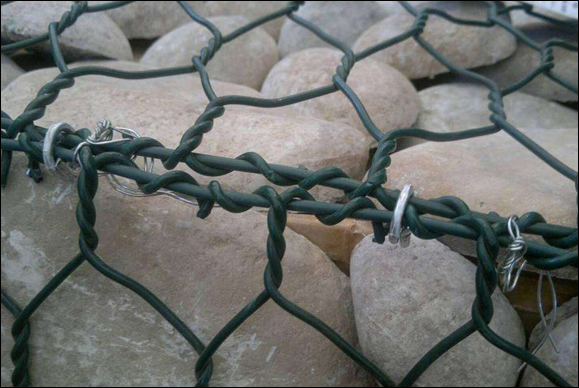

Silicone coated wire gabions

Silicone coated wire with an ultra flexible silicone rubber coating on the outside instead of PVC.

A layer of silica gel is applied between the galvanized wire and the PVC, and then a layer of special glue is applied to make the PVC and the galvanized iron wire melt and cast together, which is inseparable.

Its main feature is that PVC and alloy wire are tightly combined, and there will be no cracks due to extrusion, and no cracks due to different shrinkage rates caused by changes in external temperature. The service life is greatly extended, especially in seawater. The service life can reach 100 years, which is much longer than other products.

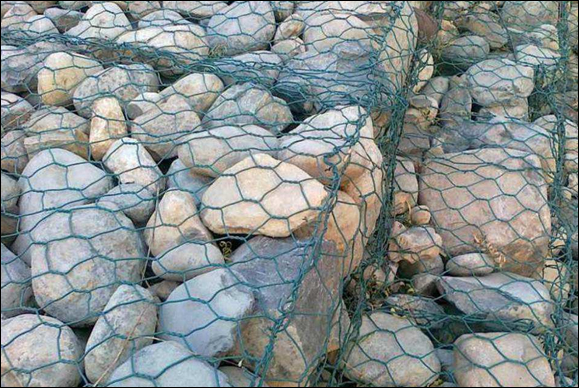

Gabion Woven Basket (polymer coated galfan)

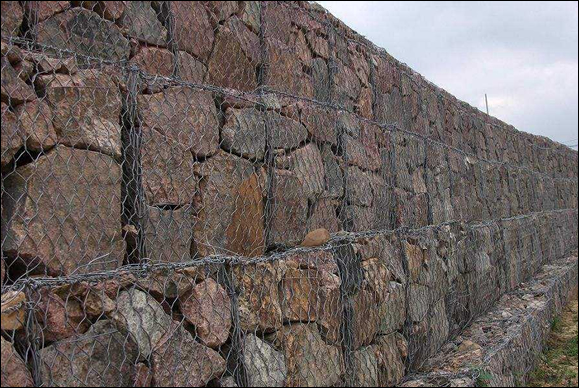

Polymer Coated Woven Gabions in Green

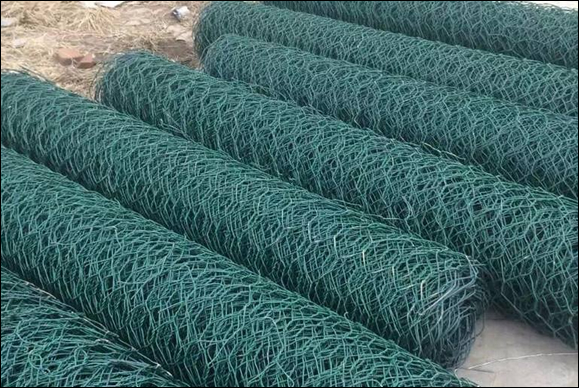

PET Polyester Coated Gabions

Polyester Gabions has a smooth surface, no burrs on the surface, and it will never rust. PET or polyester coated gabions are mainly used in coastal areas for slope support, foundation support, mountain rock surface hanging net, slope greening, deep sea isolation nets, deep sea aquaculture cages and other underwater fences, which can protect the sea from pollution.

Mesh Materials: Polyester hexagonal wire netting has the characteristics of not easy to break, high strength, good toughness, high temperature resistance, acid and alkali resistance, UV radiation resistance, weathering resistance, smooth surface, and long service life.

Polyester coated hexagonal wire gabions can also be used in marine aquaculture, freshwater aquaculture, and can also be used for marine uses, rivers.

Polyester gabion nets can be made into aquaculture cages with high strength, flexibility, corrosion resistance, anti-aging, and strong wind and wave resistance.
