Gabion Gravity Walls-Limestone Gabion Retaining Wall

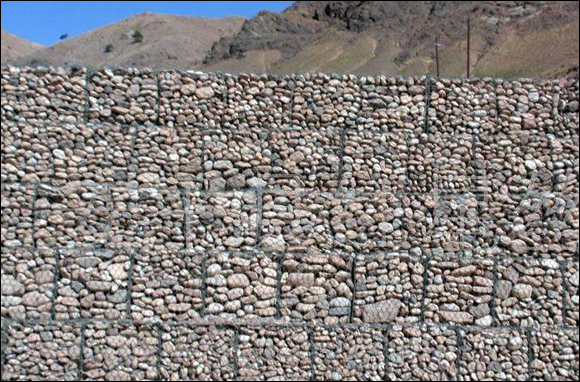

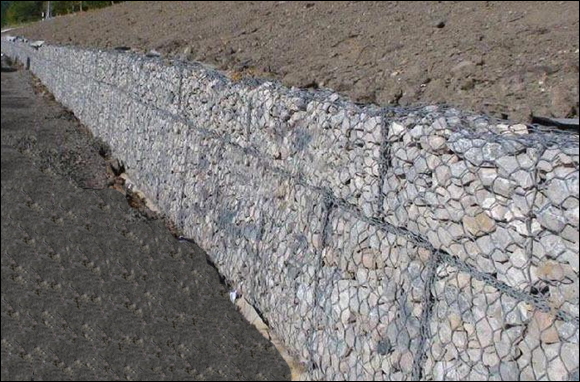

Among the most common gabion structures, gravity wall rely on their significant mass and geometry to retain soil. Inherently flexible and porous, gabions are well mechanically suited to gravity walls and require no additional drainage. Gravity walls are usually designed with a 6 degree batter from vertical, with either a stepped front face or step Gravity walls constructed from gabions will revegetate over time but may be selectively planted with desired species. Once established, the vegetation will add even greater strength to the structure. Alternatively, Modular Gabion Systems gabions may be faced with our exclusive Blocks.

Modular Gabion Systems are an ecomonical and attractive alternative to walls constructed from concrete or articulated block. Gravity walls are ideally suited to construction from roll-stock. This purchase option offers substantial savings in material costs and labor, incurs less freight and permits costruction of continous lifts up to 300-feet in length. Baskets may be filled with locally available graded stone, or for even greater economy, crushed concrete.

Limestone Gabion Retaining Wall
Gabion retaining wall of dimensions 100-90cm in width, 50cm in height and 200cm in length, consisting of wire mesh of 3.5 mm welded mesh of 50x100 mm outer and 100x100 mm inner mesh, galvanized of 350 gr / m2, the gabison will have at least 8 internal wire braces of 5.0 mm per m2, lattices joined by a 1.26 mm thick anti-puncture tubular closure. For its correct execution, the gabion will have the required separators made using the same type of meshes (100x100mm), according to specifications.

Limestone Gabion Cladding (300mm thick)
Gabison 30cm thick, 500cm high and 200cm long, gabion system formed by wire mesh of 3.5 mm welded mesh light mesh 50x100 mm outside and 100x100 mm inside. Galvanized 350 gr / m2, the gabion will have at least 8 internal wire braces of 5.0 mm per m2, lattices joined by a 1.26 mm thick anti-puncture tubular closure to according to specifications. The cladding system includes necessary fastening of the gabion to the wall to ensure its correct stability.

Glass-rock Gabion Cladding
Supply gabions 30cm thick, 50cm high and 200cm long, gabion system formed by wire mesh of 3.5 mm welded mesh light mesh 50x100 mm outside and 100x100 mm inside. Galvanized 350 gr / m2, the gabion will have at least 8 internal wire braces of 5.0 mm per m2, lattices joined by a 1.26 mm thick anti-puncture tubular closure according to specifications. The cladding system includes necessary fastening of the gabion to the wall to ensure its correct stability.

Limestone Gabion with Glassrock Strip
Gabion retaining wall of dimensions 100- 90cm in width, 50cm in height and 200cm in length, consisting of wire mesh of 3.5 mm welded mesh of 50x100 mm outer and 100x100 mm inner mesh, galvanized of 350 gr / m2, the gabion will have at least 8 internal wire braces of 5.0 mm per m2, lattices joined by a 1.26 mm thick anti-puncture tubular closure.

PVC coated gabion baskets gravity retaining walls
