Hexagonal Wire Netting- Twisted Woven soft wire mesh,Heavy Type double twisted

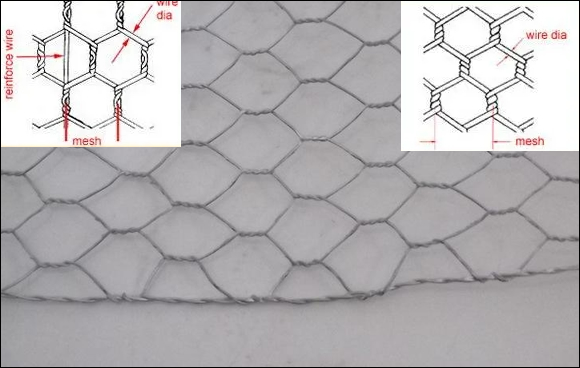

Hexagonal wire netting is also called twisted wire mesh , also called soft-edged wire mesh. Twisted mesh made of hexagonal wire woven by metal wires. The diameter of the metal wire used varies according to the size of the hexagon.
For galvanized hexagonal wire use metal wire with a diameter of 0.3mm to 2.0mm. twisted woven mesh with a PVC-coated wire use a PVC wire with an outer diameter of 0.8mm to 2.6mm . twisted into a hexagonal shape, the line on the edge of the outer frame can be made into single twisted,double twisted,triple twisted and movable edge wires.
The edge line of the outer frame can be made into single-sided, double-sided, and movable edge wires to make a stone gabion box.
Weaving: Straight twisted, reverse twisted, straight & reverse twisted,single or double edge.
Wire netting with hexagonal opening offers good ventilation and fencing uses. Hexagonal wire netting is made of twisting carbon steel wire, electro or hot dipped galvanized, then plastic coated, or plain.

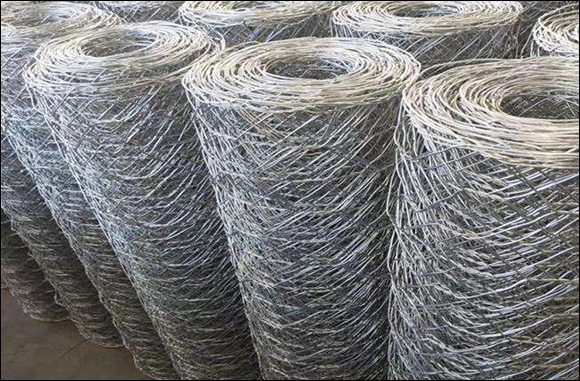

It can be fabricated into gabions boxes – one of the most popular wire products for flood control. Then stones are put into it. Laying of gabions make a wall or bank against water and flood. Hexagonal wire netting is also welded into poultry netting for breeding of chicken and other poultry. Popularly used as fences after green coated, and costs can be reduced. In the past years, the hexagonal wire netting made of galvanized iron wire has been used in fences, breeding and construction reinforcement.
According to the application, we can supply wire netting in the following types:
General Purpose Wire Netting;
Heavy Type Wire Netting;
Poultry Netting;
Chicken Wire;
Wire Netting for Fences.
Hexagonal opening woven wire netting is mostly used as light fencing for poultry, farms, for birds, rabbits and pet enclosures, tree guards and garden fencing, storage bins and decorative supports tennis courts. It is also used as wire mesh fabrics for light reinforcement in splinter proof glass and cement concrete, plastering and laying of roads, etc.
Processing Types available include:
• straight twist hexagonal wire netting
• reverse twist hexagonal wire netting
• double-direction twisted hexagonal wire netting
Finishes of Hexagonal Wire Netting can be:
• galvanized after weaving ,galvanized before weaving ,
• PVC coated galvanized
• hot-dipped galvanized
• electro galvanized

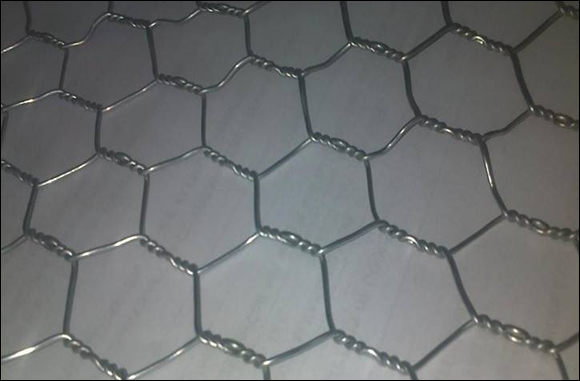

galvanized after weaving hexagonal wire netting
Mesh |
Wire dia |
Mesh Width |
|
|
BWG |
mm |
Meter |
3/8" |
27-23 |
0.41-0.64 |
width limit:2M,single or double edge |
1/2" |
27-22 |
0.41-0.71 |
width limit:2M,single or double edge |
5/8" |
27-22 |
0.41-0.71 |
width limit:1.22M,single or double edge |
3/4" |
26-20 |
0.46-0.89 |
width limit:2M,single or double or strong edge |
1" |
25-19 |
0.51-1.07 |
width limit:2M,straight or reversed twist |
1-1/4" |
24-18 |
0.56-1.24 |
width limit:2M,straight or reversed twist |
1-1/2" |
23-16 |
0.64-1.65 |
width limit:2M |
2" |
22-14 |
0.71-2.11 |
width limit:2M |
3" |
21-15 |
0.81-2.11 |
width limit:2M |
