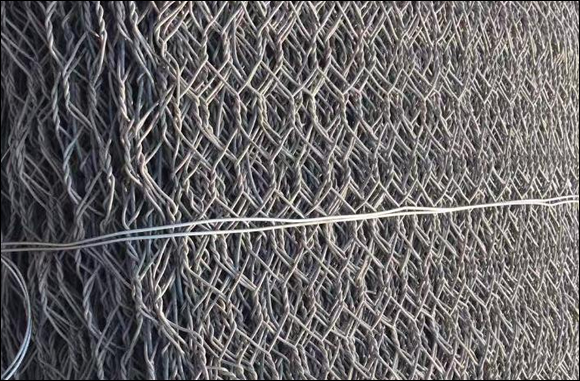

WOVEN WIRE MESH CAGES (BASKETS) for Gabion Project
Aerct supplies woven wire (Non-Welded) mesh cages (baskets) for gabion project construction. The mesh shall be hexagonal shaped. Hence, the woven wire mesh is also known as twisted mesh. Woven mesh gabion cages/baskets enjoy the features of uniform opening and flexible structure compared with Welded Mesh Gabions. The lid, back, front and base are woven into a whole unit with partitions and end connected. The woven mesh cage gabions are foldable (collapsible) mesh structures that can be packed and shipped easily to save space. Rings are provided also for gabion projects.
Surface treatment of Woven Wire (NOT WELDED) Mesh Cages for Gabions:
Hot dipped galvanized;
Galvanized aluminum alloy;
PVC coating.
Technical Details of Popular Gabion System, Export for American Market:
| Item No. | Description | Qty | Unit |
| Project 1 | WOVEN WIRE (Not welded) MESH CAGES (BASKETS) for gabion project: DIMENSION: 9'L x 3'W x 3'H (L=length; W=width; H=height). ADDITIONAL DETAILS FOR REQUIREMENT: The metal mesh material can be hot-dipped galvanized, galvanized aluminum alloy or PVC coated. The steel mesh properties equal to or greater than ASTM A975, if non-US manufacturer, then document compliance with this standard. Delivery of components: flat with front, base, back and lid of gabions woven into single unit with end and partition connected to base. The opening sizes should be hexagonal shaped, mesh nominal dimension 3.25" but not >4.0" or < 3.0" |
60 | EA |
| Project 2 | WOVEN WIRE (Not welded) MESH CAGES (BASKETS) for gabion project : DIMENSION: 6'L x 3'W x 3'H (L=length; W=width; H=height). ADDITIONAL DETAILS FOR REQUIREMENT: The metal mesh material can be hot-dipped galvanized, galvanized aluminum alloy or PVC coated. Must provide steel mesh properties equal to or greater than ASTM A975, if non-US manufacturer, then document compliance with this standard. Delivery of components: flat with front, base, back and lid of gabions woven into single unit with end and partition connected to base. The opening sizes should be hexagonal shaped, mesh nominal dimension 3.25" but not >4.0" or < 3.0" |
60 | EA |
| 3, Fittings | Rings for gabion project, 1600 pieces per box | 30 | BOXES |
