Gabions Welded for Construction of Military Fortification Barrier - Anti Blast Defence Gabion Walls - Flood Control Barrier Wall-Safety and Security Barrier, Bunkers and Defensive Structures

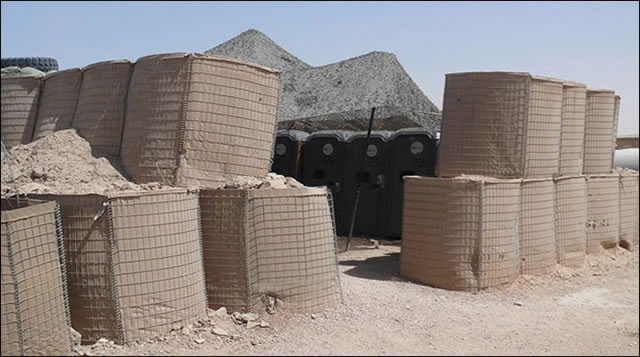

Welded Mesh Gabions with strong mesh panels and heavy zinc corrosion protection are ideal material for military defending wall and security barriers.

Welded mesh gabions are populary used in military defense applications due to structural strength, rapid deployment capability, versatility, durability and effectiveness in providing ballistic and blast protection.

Welded mesh gabions filled with sand, gravel, or rubble can form strong and stable protective barriers to provide effective protection against small arms fire, shrapnel, and blast waves from explosions.

Wire Material for Military Barrier: Hot-dipped galvanized wire, Hot-dipped galvanized wire with PVC coated, Zn-10%-Al wire, Zn-5%-Al wire.
Military Cells Structure:
The gabion barrier is assembled with collapsible wire mesh cages and heavy duty fabric liners.
The cover panels, side panels and bottom panels are produced separately, then assembled to a basket secured with lacing wire or hog rings.
Selvedge wire used to increase the strength of the mesh baskets by reinforcing the welded mesh panels are thicker wire than the mesh wire applied and stronger.
Wire diameter range:3.0-6.0mm
Spring selvedge wire Diameter:4.0mm
Gabion Mesh opening: 50*50mm,75*75mm, 76.2*76.2mm,100*100mm, more.
Geotextile: Heavy duty non-woven polypropylene, in colors sand color, biege color, military Green.

Application:
Military defense
Perimeter security barrier
Command post, observation points and border checkpoints
Military barrier fortification system
Equipment revetment
Explosives and contraband search areas
Anti blast defence walls
Protecting structures
Defensive Firing Positions
Flood contro retaining wall

Gabion Barriers Features:
1. Economical. Just fill the stone or sand into the gabion containers and seal it.
2. Easy installation and quick finishing
3. Weather proof under natural destroy, corrosion resistant.
4. No collapse even under big pressure
5. Strong and solid structures
6. Good permeation can prevent the damage by hydrostatic.
7. Less transportation freight
8. Can be used with barbed wire

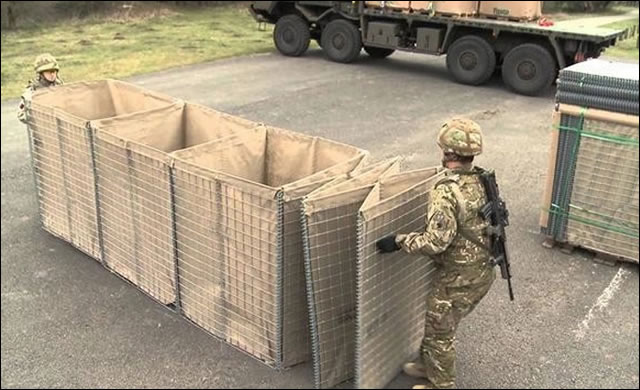

Installation and Forming of The Gabion Barriers with Welded Mesh Panels, Spiral Binders, Pins and Sand
1, Front and back mesh panels are placed upright on the bottom panels
2, Secure panels by screwing spiral binders through the mesh openings in adjacent panels
3, Stiffeners shall be placed across the corners, at 300mm from the corner. Providing a diagonal bracing, and crimped over the line and cross wires on the front and side faces.
4, Gabions filled with stone or sand
5, Close the lid and secure with spiral binders at the diaphragms, ends, front and back.
6, When stacking tiers of the welded gabion box, the lid of the lower tier may serve as the base of the upper tier. Secure with spiral binders and add pre-formed stiffeners to exterior cells before filling with sands.
7. Units can be extended and joined using the provided joining pins.

Joining Cells with Pliers:

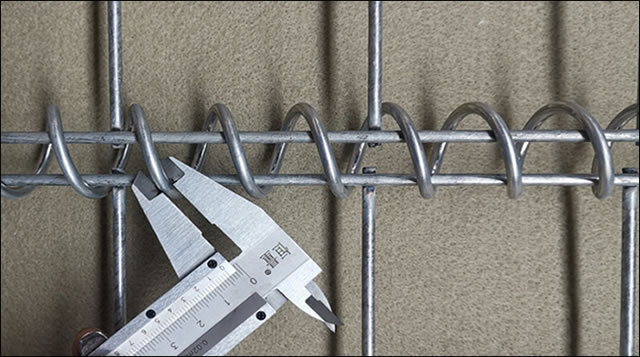

Checking Wire Sizes:

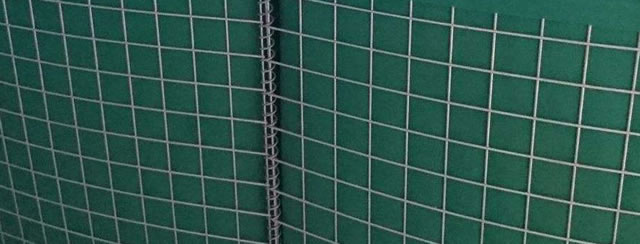

Geotextile Fabric for Lining:

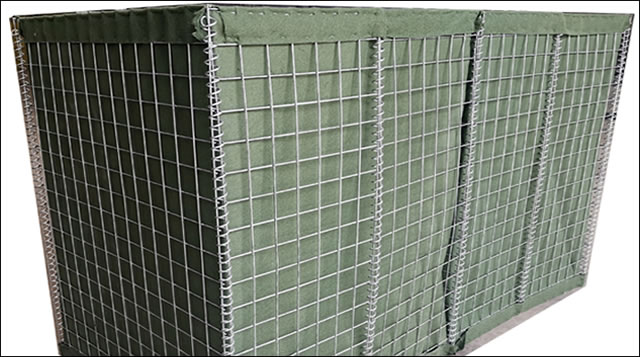

Heavy Galvanized Gabion Baskets For Military Fortifications
Cells: Gabion Basket
Can be used in separate cell or some cells joint together to form a fortification post

Welded gabion baskets made from electric welded wire mesh panels connected by spirals/helicals assembled with spacers/stiffeners.
Mesh size: 100 x 100 mm

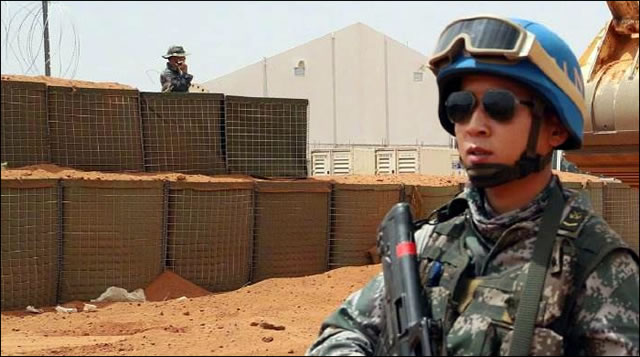

Gabions of Welded Galvanized Mesh, for Military Defence
Cells: HDG gabions, fixed with Spring Wire, linered with Geotextile Fabric
Material: Galvanized Wire Mesh, Spring Wire, military green Geotextile

Barrier height 220cm , length 150cm , width 220cm, for construction contract in Iraq

Defensive Gabion Wall
Cells: Gabion boxes
Material: Galfan ( Zinc Aluminum Zn-10%-Al ) Wire

Army protection gabion wall

Material : Stainless Steel wire
Wire diametre : 3 mm
Spring wire : 3 mm
Mesh hole : 50 mm x 50 mm
Geotextile : Heavy duty non-woven polypropylene
Finish : Galfan coated welded mesh frame
Dimensions : 1m x 1m

Gabion Fence
10 cells per unit: 1m height x 1m width x 10m length, for base of fences
20 cells per unit: 2.12m height x 1.52m width x 30.5m length, for top of fences

UAE  Perimeter security military fence, Color: Beige

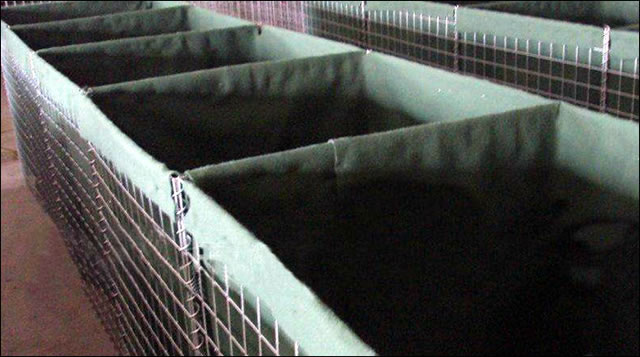

Geotextile-lined Welded Mesh Barrier Multi-Cellular System
Cells: Zinc coated steel welded mesh cages lined with non-woven geotextile.
The unit is filled with sand, gravel, crushed rock and other granular materials.
The mesh is coated to ASTM A 856. All wires conform to the BS EN 10218-2:2012.
Zinc-Aluminum coatings are to BS EN 10244-2:2009.

Barrier size for Iraq national defence border: Wire diameter: 4mm, Military Barrier Mesh Size: 75mm x 75mm
Military Barrier Panel size: 2.21m x2.13m

Bastion Barrier
Cells: Gabion Sacks
The bastions of gabions are used as a temporary to semi-permanent levee or blast wall against explosions or small-arms.

Military barrier for Ukrainian market, the normal size of sack containers:1.5x1x1m, 2x1x1m,3x1x1m

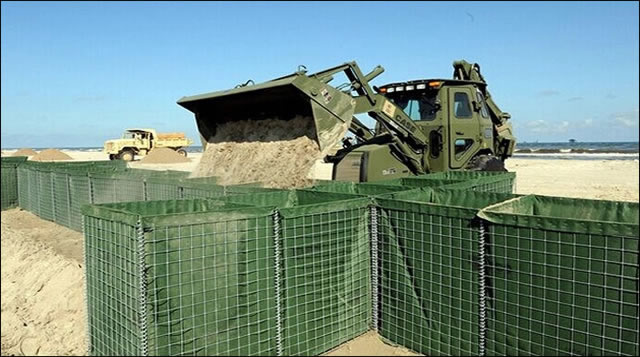

Perimeter Security Fencing System of Gabions and Concertina Coils
Cells: Gabion containers with Geotextile liner

Mesh barrier exported to USA
Sand container: 30.5m length x 2.21m width x 1.52 m height
Sand container: 10m length x 1.22m width x 1.37m height
Sand container: 3.05m length x 0.61m width x 0.61m height
Gabion Liner, gray, geotextile: 2.44m wide by 175m long

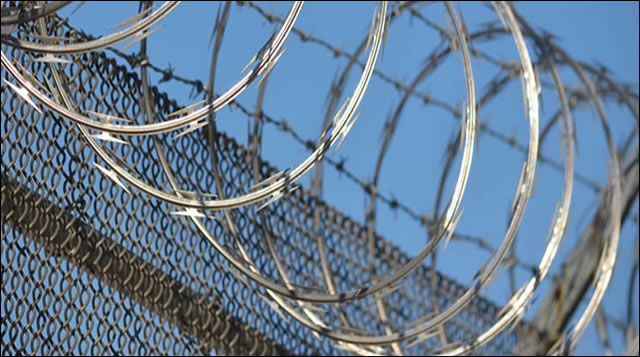

Barbed Wire, Concertina, 30 inch diameter, 101 loops, 5 welds, stainless steel

Razor barbed tape can also be used along borders for military barrier uses.

Defensive Fencing Gabion Mesh and Panel Specifications

Mesh wire diameter	3mm, 4mm, 5mm, 6mm etc
Spring wire diameter	3mm, 4mm, 5mm, 6mm etc
Mesh size	50*50mm, 50*100mm, 37.5*100mm, 60*60mm, 65*65mm, 70*70mm, 76*76mm, 80*80mm, more
Panel Size	0.61*0.61m, 1*1m, 1.2*1.2m, 1.5*1.5m, 1.5*2m, 2*2m, 2.21*2.13m, more
Finish	Electro galvanized after welded Hot dipped galvanized welded Galfan coated after welded
Geotextile	Heavy duty non-woven polypropylene, in grey, beige, military green
Packing	Wrapped with shrink film or packed in pallet

Gabion Bastion Sizes

Height	Width	Length
4'6"(1.37m)	3'6"(1.06m)	32'9"(10m)
2'(0.61m)	2'(0.61m)	4'(1.22m)
3'3"(1.00m)	3'3"(1.00m)	32'9''(10.00m)
3'3"(1.00m)	5'(1.52m)	32'9''(10.00m)
2'(0.61m)	2'(0.61m)	10'(3.05m)
5'6"(1.68m)	2'(0.61m)	10'(3.05m)
7'3"(2.21m)	7'(2.13m)	91'(27.74m)
4'6"(1.37m)	4'(1.22m)	32'9''(10.00m)
3'3"(1.00m)	2'6"(0.76m)	30'(9.14m)
7'3''(2.21m)	5'(1.52m)	100'(30.5m)
4'(1.22m)	12'(0.30m)	4'(1.22m)
7'(2.13m)	3'6"(1.06m)	108'(33m)
